Plain Compatible with Chevy Front Steering/Brake Kit-48 Axle/Cross Steering 5 on 4-1/2

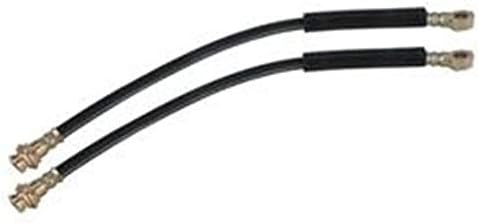

Speedway's exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, AN3 caliper fittings, Rubber Brake Lines, kingpins, flat steering arms, tie rod assembly and hardware. For 48" kingpin-to-kingpin axles. Traditional steering arm for left front wheel NOT included with Traditional steering kit. Speedway 1949-1954 Compatible with Chevy Spindles One piece forged 4140 steel Modeled after the 49-54 Compatible with Chevy passenger car spindles Steering arms may be mounted to the top or bottom of the spindle Standard king pins fit to spindles. Speedway 9-1/4" Brake Kit 9-1/4" Compatible with Mustang II rotors 5 x 4-1/2" or 5 x 4-3/4" bolt patterns Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP) Hub flange (hat) diameter - 5.74" GM Metric '78-'88 calipers, 2-1/2" piston 7/16" banjo bolt to -3 AN line adapter kit. Traditional or Cross Steering Kit Flat plate steering arms 5/8" tie rod steering link 5/8" standard heim joint rod ends Seals-It 5/8" rod end seals 5/8" steel cone heim spacers.

• Budget friendly steering and brake kit for 48" kingpin center to center axles with 49-53 Compatible with Chevy kingpin boss
• One piece forged 4140 steel spindles with kingpins already fit, modeled after '49-'54 Compatible with Chevy car
• Features 9-1/4" vented rotors with your choice of wheel bolt pattern, 5 on 4-1/2" (1/2" wheels studs) or 5 on 4-3/4" (7/16" wheel studs)
• Standard '78-'88 GM metric style calipers offer a 2-1/2" bore with 7-16"-20 inlet
• 7/16"-20 to AN3 banjo bolt adapter kit included for calipers
